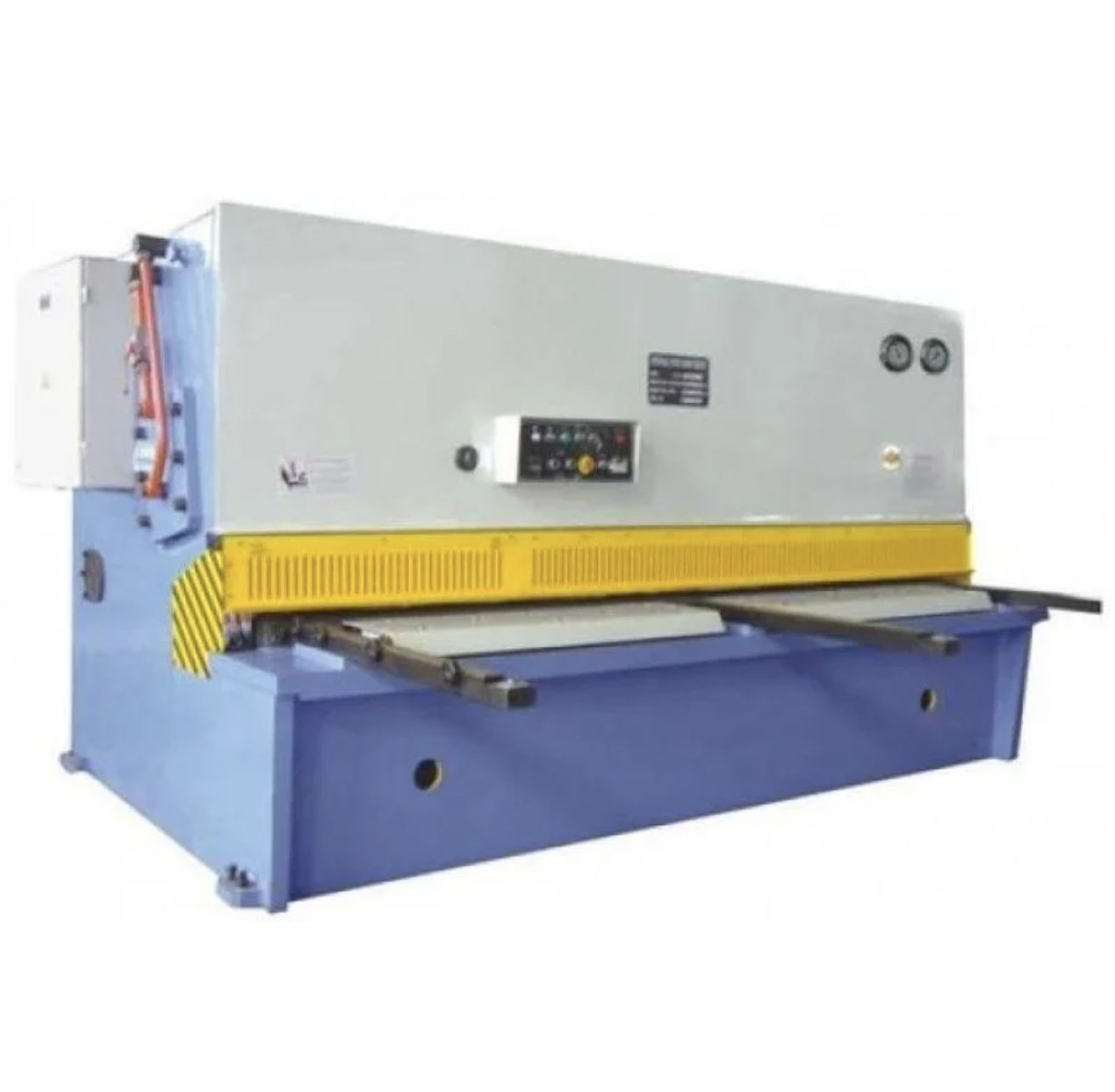

Гидравлическая гильотина CORMAK - серия Q12Y
- Під замовлення
- Код: Q12Y

Ціну уточнюйте
Мінімальна сума замовлення на сайті — 1000 грн
+380 (96) 467-36-36
Київстар
- +380 (63) 723-84-54Лайф
повернення товару протягом 14 днів за домовленістю
Опис
Характеристики
Інформація для замовлення
An economic version of Hydraulic Swing Beam Shears with the cutter constant rake and the gap between cutters control.
The CORMAK Hydraulic Swing Beam Shears is designed for rectilinear cutting of sheets and strips from steel metal plates, non-ferrous metal plates and other materials. A modern construction and solid structure warrant safety and higly efficient use. The high quality of applied constructional materials secures metal plates accurate and precision working. Rich standard equipment, the quality of the workmanship and more than affordable price make that our machines can be used even in small enterprices.
Standard equipment
- Rear stop driven with electric motor.
- Rear stop position digiral readout.
- Gap between cutters control.
- Cutters kit.
- Metal plate ball guiding on table.
- 3 front slides.
- Front stop with measure.
- Side safety guards.
- Rear safety guard.
- Foot switch.
- TOD in Polish language
- EC Declaration
Technical data
Model | 4X2000 | 6X2500 | 6X3200 | 8X2500 | 8X3200 | 10X3200 | 12X3200 | 16X3200 |
---|---|---|---|---|---|---|---|---|
Material thickness (mm) | 4 | 6 | 6 | 8 | 8 | 10 | 12 | 16 |
Working width (mm) | 2000 | 2500 | 3200 | 2500 | 3200 | 3200 | 3200 | 3200 |
Cutting angle (°) | 1,3 | 1,3 | 1,3 | 1,3 | 1,3 | 1,3 | 1,3 | 1,3 |
Number of impacts per minute | 20 | 18 | 16 | 14 | 12 | 12 | 10 | 10 |
Motor power (kW) | 3 | 7,5 | 7,5 | 11 | 11 | 15 | 18,5 | 22 |
Rear stop range of operation mm) | 20-480 | 20-600 | 20-600 | 20-600 | 20-600 | 20-600 | 20-900 | 20-900 |
Machine weight (kg) | 3400 | 5200 | 6500 | 6200 | 7300 | 9800 | 12000 | 14000 |
Основні | |
---|---|
Виробник | Cormak |
Країна виробник | Китай |
- Ціна: Ціну уточнюйте
