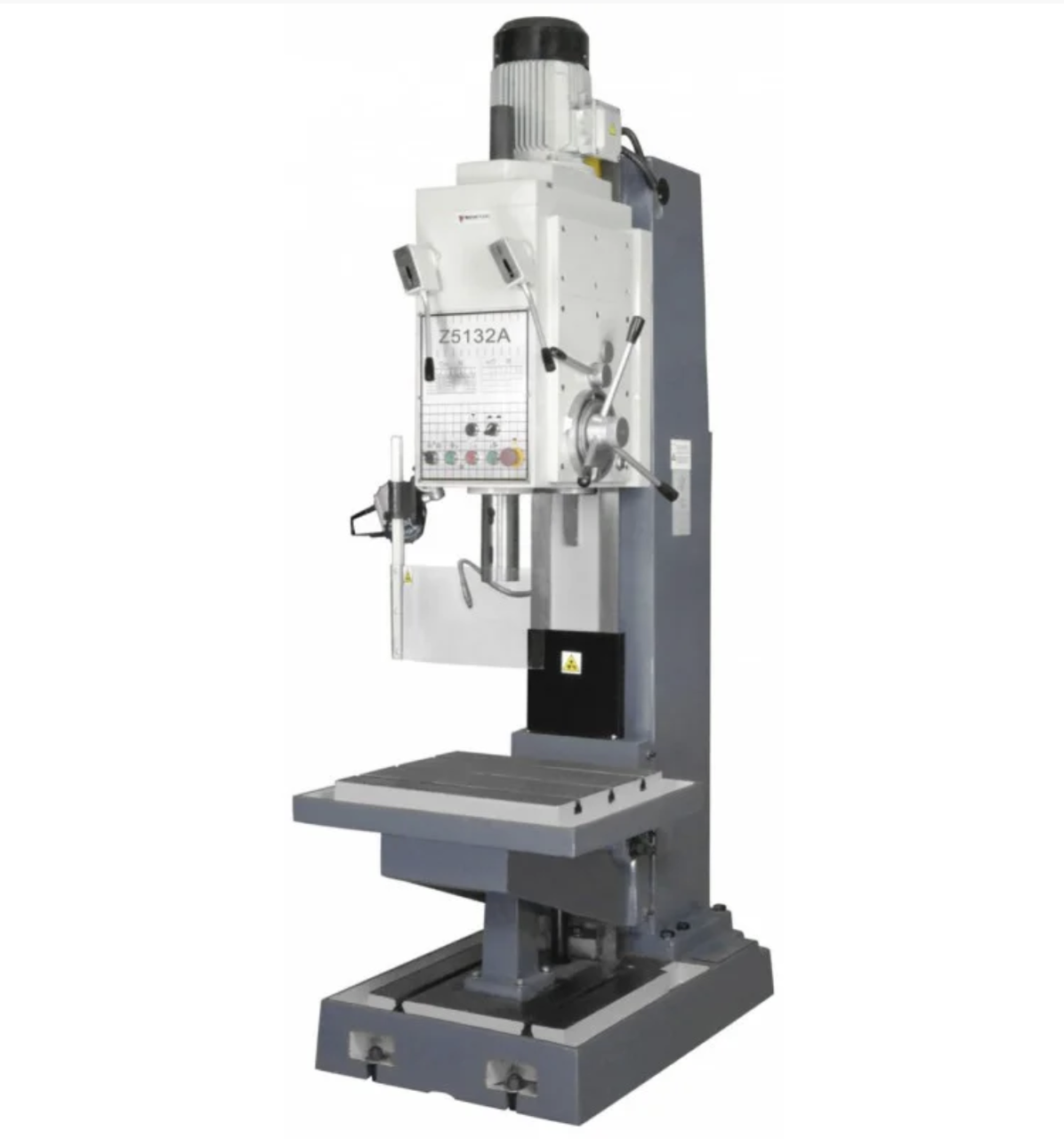

Промисловий свердлильний верстат CORMAK Z5132A
- Під замовлення
- Код: Z5132A
Відправка з 07 травня 2025Ціну уточнюйте
- +380 (63) 723-84-54Лайф
An industrial box-column drilling machine used for drilling, spot drilling, threading etc. This series of drilling machines is characterized by extremely accuracy, a broad range of speeds, easy maintenance and use.
Machine characteristics
The industrial box-column drilling machine is commonly used for drilling, spot drilling, threading etc. The machine is characterized by high efficiency-accuracy, a low noise level, a broad range of speeds, a centralized control panel, easy maintenance and use.
- Quick and easy feed and speed control thanks to comfortable control lever
- Strong, high power and torque as well as high pressure force and feed motor
- Threading at automatic rotation change and depth adaptation
- Automatic spindle feed, threading option and lighting in standard equipment
- Quick feed and return motor
- Trouble-free and long life operation warrant use of high quality parts and components
- Column and base robust and solid
Technical data
|
MAXIMAL DRILLING CAPACITY |
32 mm |
|
THREADING |
M22 |
|
TORQUE |
160 Nm |
|
HEAD MOVEMENT ON COLUMN |
200 mm |
|
MORSE TAPER |
MK4 |
|
SPINDLE SPEED (9 gears) |
50 - 2000 rpm |
|
FEED RANGE |
(9) 0.056 – 1.80 mm/rotation |
|
FEED FORCE |
9000 N |
|
GAP BETWEEN SPINDLE AND COLUMN |
280 mm |
|
MAXIMAL GAP BETWEEN SPINDLE AND TABLE |
680 mm |
|
SPINDLE STROKE |
200 mm |
|
TABLE/T-SIZE SLOTS |
550 x 400 mm/14 mm |
|
TABLE MOVEMENT |
300 mm |
|
MOTOR POWER |
2.2 kW |
|
MACHINE DIMENSIONS |
700 x 960 x 2340 mm |
|
WEIGHT |
950 kg |
| Основні | |
|---|---|
| Виробник | Cormak |
| Країна виробник | Польща |
