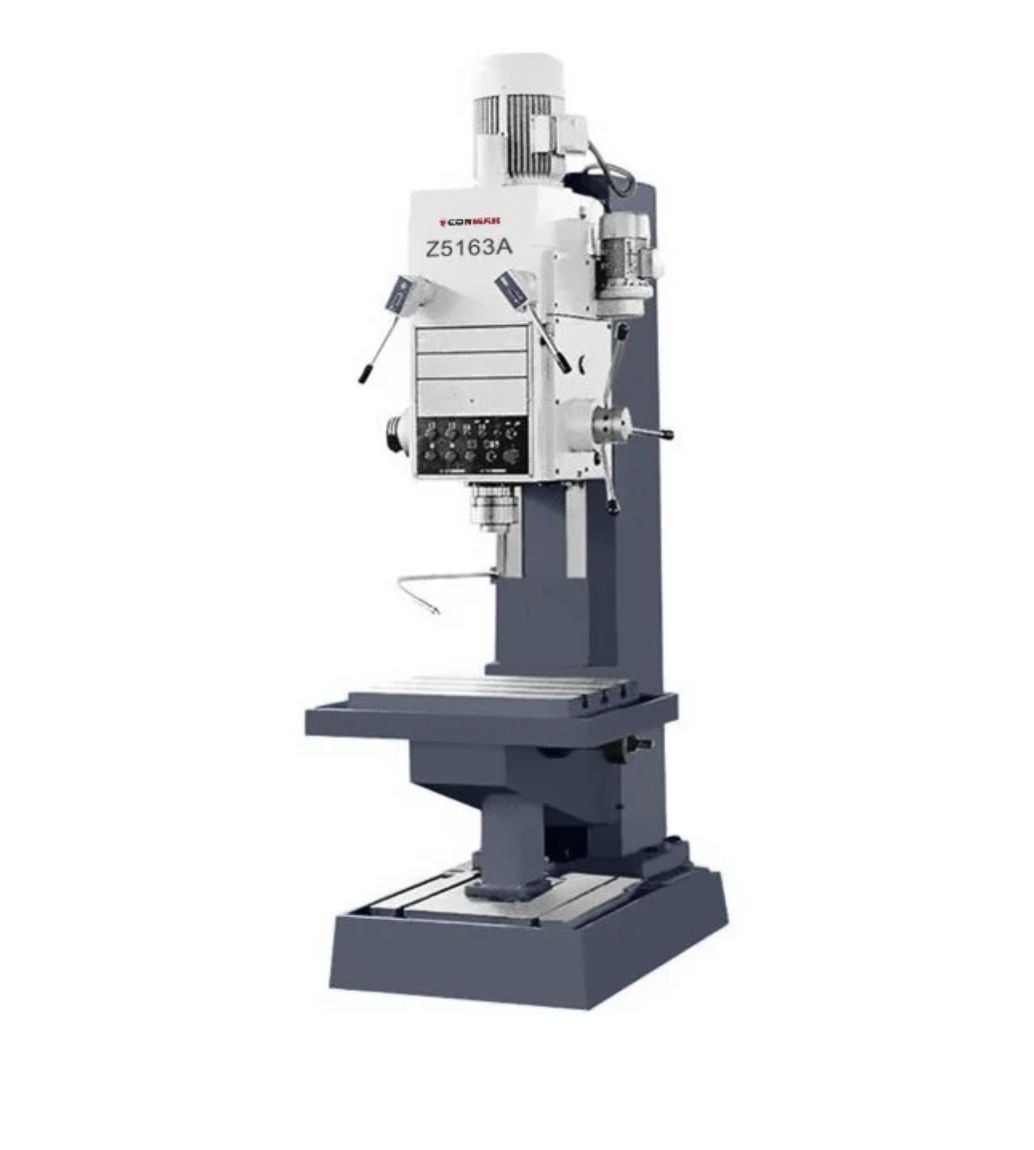

An industrial box-column drilling machine is used for drilling, reaming, threading etc. The series of these drilling machines is characterized by extremely accuracy, a broad range of speeds, easy maintenance and use.
Machine characteristics
An industrial box-column drilling machine commonly used for drilling, spot drilling, threading etc. The machine is characterized by high efficiency-accuracy, a low noise level, a broad speeds range, a centralized control panel, easy maintenance and use.
- Quick and easy feed and speed control thanks to comfortable control lever
- Powerful motor of high torque as well as high pressure force and feed
- Threading at automatic rotations change and depth adaptation
- Automatic spindle feed in standard version, threading option and lighting
- Quick feed and return motor
- Trouble-free operation and long operation warranted by use of high class parts and components
- Column and base strong and solid structure
Technical data
MAXIMAL DRILLING CAPACITY |
63 mm |
THREADING |
M48 |
TORQUE |
800 Nm |
HEAD MOVEMENT ON COLUMN |
260 mm |
MORSE TAPER |
MK5 |
SPINDLE SPEED (9 gears) |
40 - 570 rpm |
FEED RANGE |
(6) 0.1 – 0.78 mm/rotation |
FEED FORCE |
30000 N |
GAP BETWEEN SPINDLE AND COLUMN |
375 mm |
MAXIMAL GAP BETWEEN SPINDLE AND TABLE |
870 mm |
SPINDLE STROKE |
250 mm |
TABLE/T-SIZE SLOTS |
660 x 555 mm / 22 mm |
TABLE MOVEMENT |
300 mm |
MOTOR POWER |
5.5 kW |
MACHINE DIMENSIONS |
900 x 1300 x 2850 mm |
WEIGHT |
2500 kg |
Основні | |
---|---|
Виробник | Cormak |
Країна виробник | Польща |
- Ціна: Ціну уточнюйте
