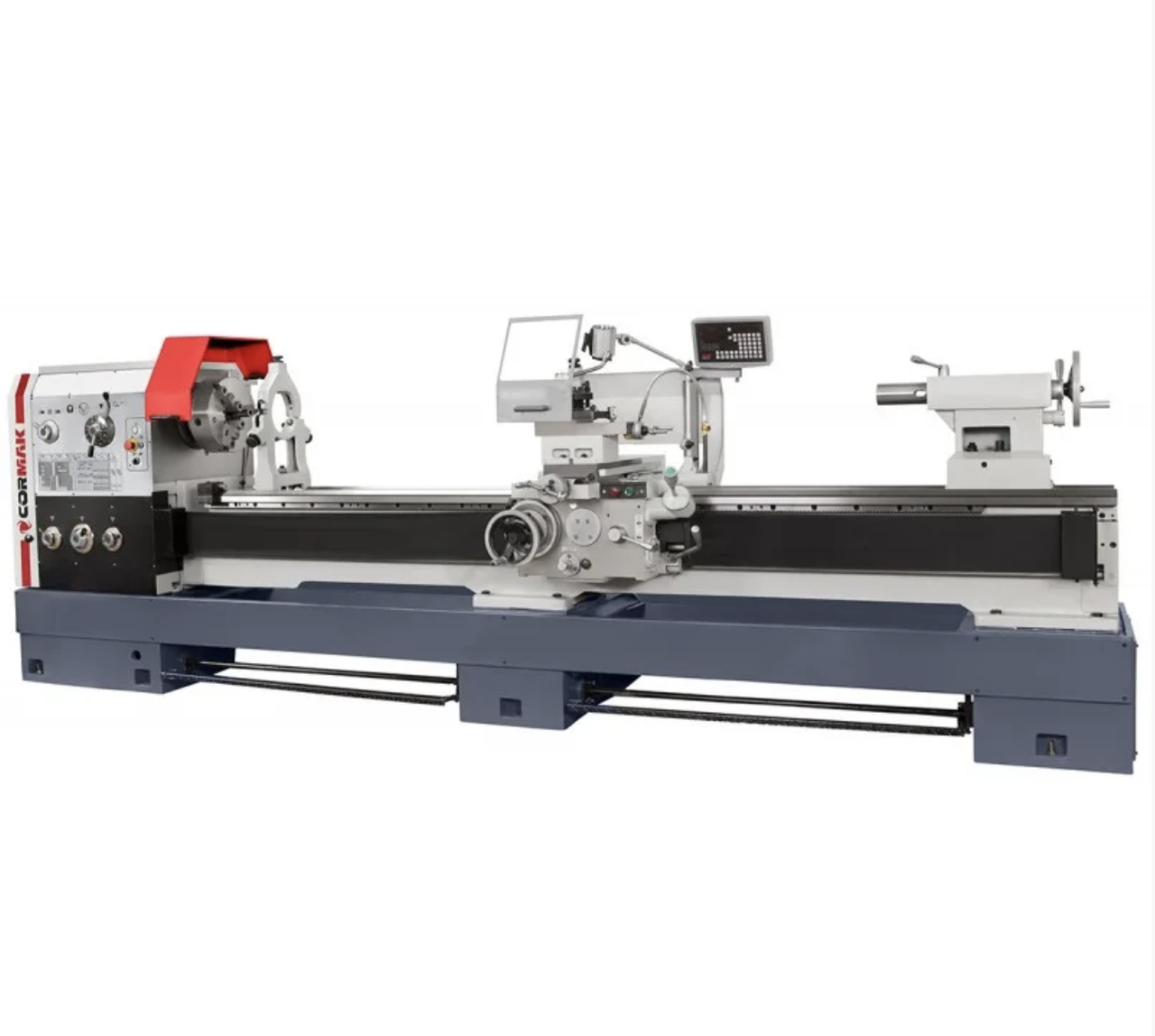

Токарний верстат CORMAK GOLIAT 660x1500/2000/3000
- Під замовлення
- Код: GOLIAT 660x1500/2000/3000
743 678 ₴
- +380 (63) 723-84-54Лайф
The CORMAK GOLIAT 660 has been manufactured in particular for industrial production of individual elements. In the basic version it has all important elements of additional equipment thanks to which range of its use is considerably broadened.
Standard equipment
- 3-jaw lathe chuck
- 4-jaw lathe chuck
- Face plate
- Steady rest
- Follow rest
- Digital readout for 3 axes
- Spindle reducer sleeve
- Dead centre
- Change gears for swing-frame of gear train
- Cooling system
- Halogen lighting installation - 24 V
- Thread dial
- Tools kit
- TOD in Polish language
- EC Declaration of Conformity
Optional equipment
- Cylindrical and internal grinder
- Rule for tapers
- Quick exchangeable tool post multifix
- Quick exchangeable cutter holder
Technical data
Swing over bed (mm) |
660 |
Swing over cross slide (mm) |
440 |
Swing over gap (mm) |
900 |
Turning length over gap (mm) |
250 |
Centre distance (mm) |
1500 / 2000 / 3000 |
Bed |
inductively hardened |
Bed width (mm) |
400 |
Lathe chuck diameter (mm) |
315 |
Spindle bore |
105 |
Spindle taper (mm) |
D1 - 8 |
Spindle mount (mm) |
113 (1:20) / MT5 |
Spindle speeds range (rpm) |
26 - 1700 |
Maximal tool dimensions (mm) |
25 x 25 |
Feed longitudinal (mm/rotation) |
0.044 – 1.48 |
Feed cross (mm/rotation) |
0.022 – 0.74 |
Metric thread (mm) |
0.45 - 120 |
Inch thread |
7/16 - 80 T.P.I. |
Modular thread |
0.25 - 60 M. P. |
D. P. thread |
7/8 - 160 D. P. |
Rapid feed (m/min) |
longwise 4.2, cross 1.9 |
Tailstock spindle diameter (mm) |
90 |
Tailstock spindle travel (mm) |
235 |
Tailstock spindle taper |
MT 5 |
Main power motor (kW) |
7.5 |
Flood coolant power pump (kW) |
0.1 |
Dimensions (L x W x H) (mm) |
3710 x 1135 x 1440 |
Net weight (kg) |
3600 |
Основні | |
---|---|
Виробник | Cormak |
Країна виробник | Польща |
- Ціна: 743 678 ₴
