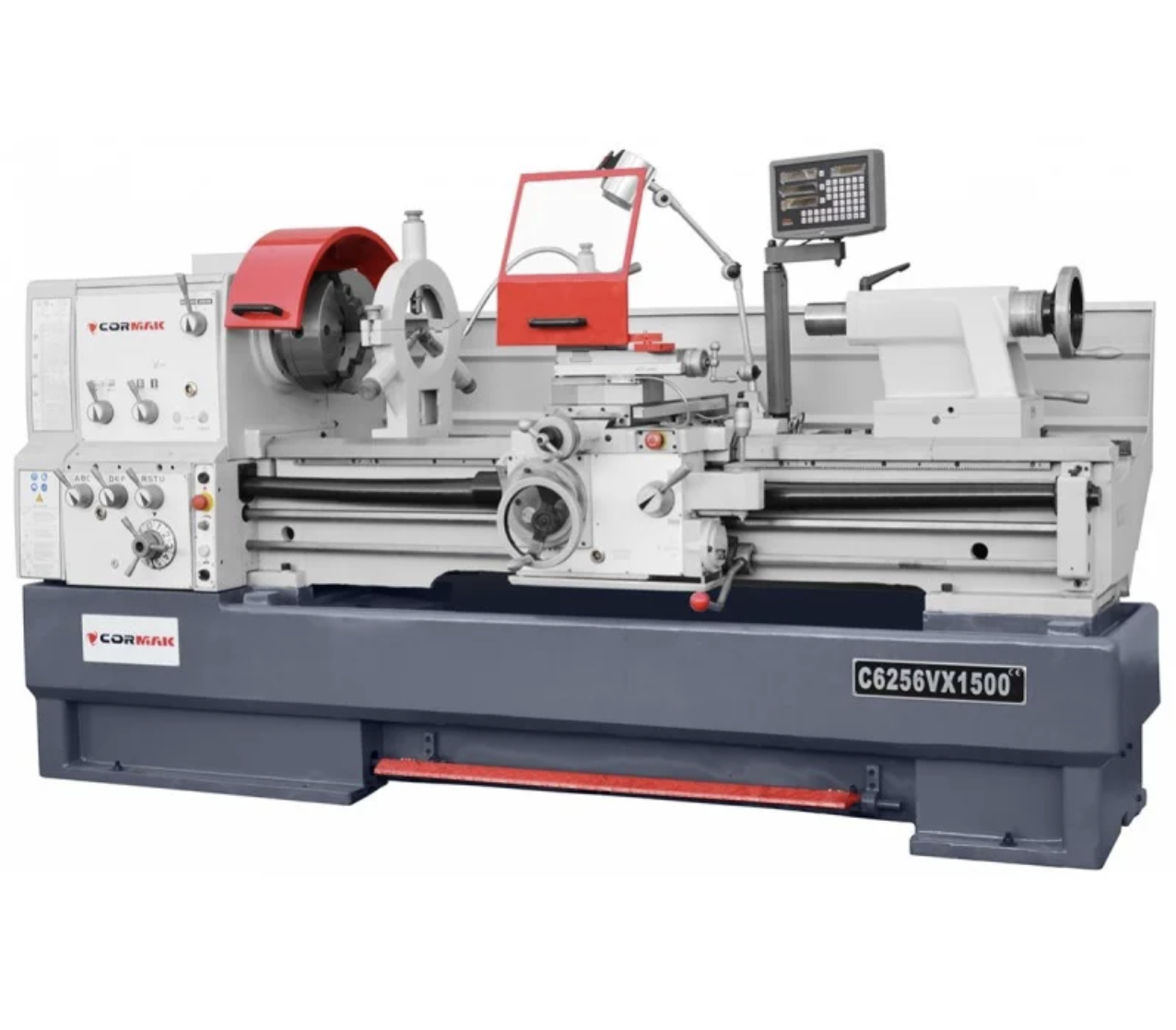

A modern universal lathe 560 has been equipped with rapid feeds, a multi-plate clutch and a digital readout thanks to which is an ideal solution for professional and industrial work.
Technical data
- Inductively hardened and precisely ground bed
- Massive, cast iron machine structure
- Lathe equipped with quick longitudinal and cross run
- Main arbor with ball bearings
- Spindle bore 105 mm
- Digital readouts for 3 axes
- VARIO model - equip in inverter with the spindle speeds infinitely variable control.
Technical data |
|
---|---|
CENTRE DISTANCE |
1500 mm |
CENTRE HEIGHT |
280 mm |
TURNING DIAMETER OVER BED |
560 mm |
TURNING DIAMETER IN BRIDGE PIECE GAP |
785 mm |
TURNING DIAMETER OVER SLIDE |
355 mm |
BED WIDITH |
350 mm |
SPINDLE BORE |
105 mm |
SPINDLE TAPER |
D1-8 Camlock |
SPINDLE SPEEDS RANGE |
25 - 1600 rpm |
MAXIMAL TOOL DIMENSIONS |
25x25 mm |
LONGITUDINAL FEED RANGE |
(35) 0,059 - 1,64 мм/rev |
CROSS-FEED RANGE |
(35) 0,020 - 0,573 mm/rev |
METRIC THREAD |
(47) 0,2 - 14 mm |
INCH THREAD |
(60) 2 - 112 Gg/1“ |
MODULAR THREAD |
(39) 0.1-7 MP |
DP THREAD |
(50) 4-112 DP |
TAILSTOCK SPINDLE TAPER |
MK 5 |
MOTOR POWER |
7,5 kW (10,0 KM) |
DIMENSIONS |
2840 x 1150 x 1460 mm |
WEIGHT |
2740 kg |
Standard equipment
- 3-jaw lathe chuck PO3-315 mm / D8
- 4-jaw lathe chuck K72-400 mm / D8
- Turning tool sets
- Face plate 450 mm
- Steady rest - max 180 mm
- Follow rest - max. 120 mm
- Rapid feed
- Cooling system
- Halogen lighting installation
- Change gears set
- Container for shavings
- Digital readout for 3 axes
Основні | |
---|---|
Виробник | Cormak |
Країна виробник | Польща |
- Ціна: 685 531 ₴
