Machine characteristics

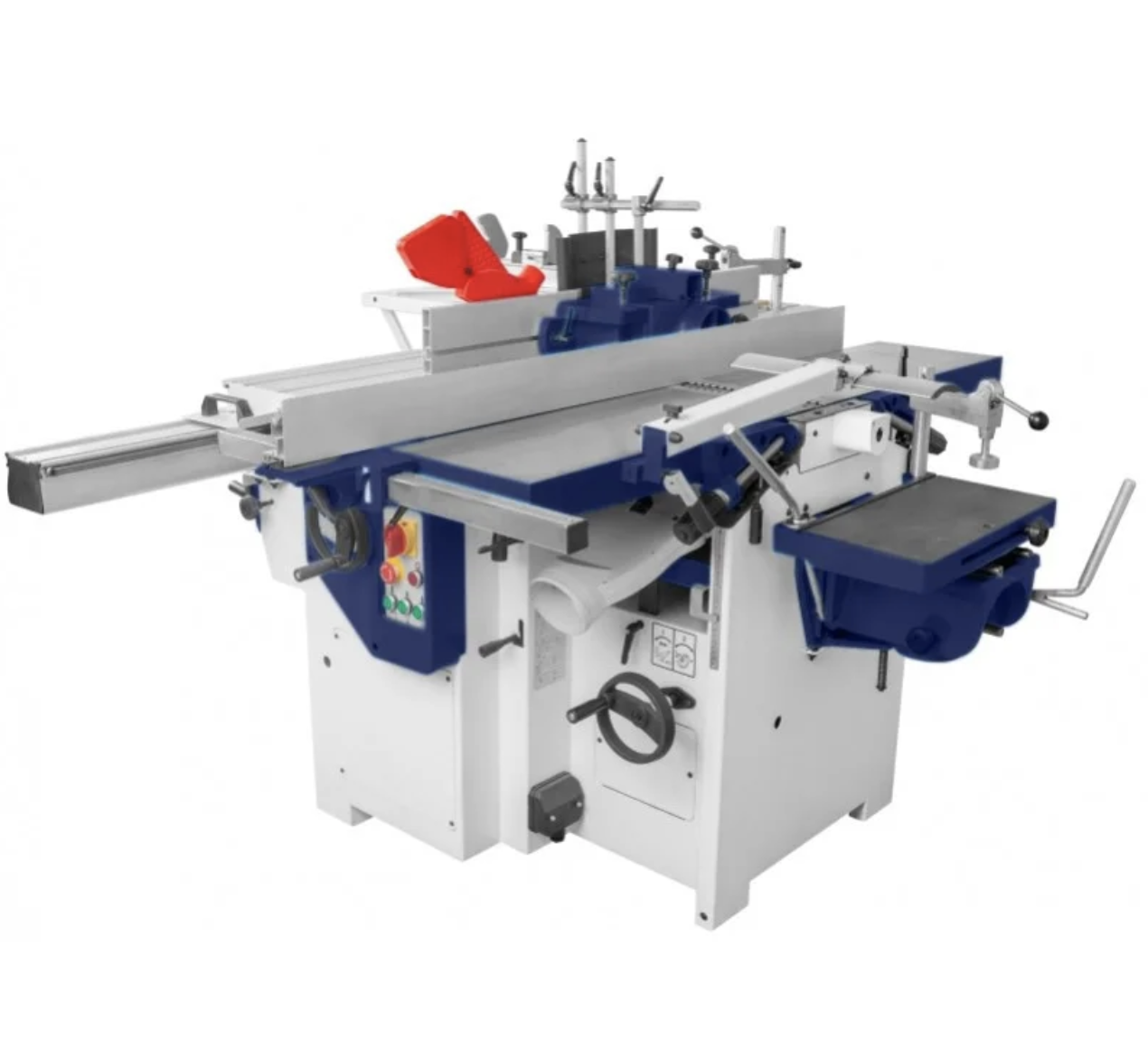

A multifunctional machine for wood working is an ideal integration of a planing machine, a circular sawing machine, a dimension saw with an undercutter, a milling machine and a thicknessing machine, securing a broad range of possibilities. Applying 3 motors mounted on a robust, solid and compact construction (530 kg) secures comfort and failure-free work.
CIRCULAR SAWING MACHINE: with a tilt spindle enables catting-off high density boards, MDF boards, ABS and PVC panels, solid wood and other wood-based materials.
PLANING MACHINE – THICKNESSING MACHINE: four knives rotating at a speed of 4000 rpm enable obtaining of very smooth surfaces and a controlled strip enables angular planing. During use of the thicknessing machine the work tables can be dismantled.
MILLING MACHINE – DRILLING MACHINE: a moved out spindle 30 mm rotates with the speed of 8500 rpm. In the guard upper side a mechanism supporting the work material is installed.
Technical data
Planing machine | |
---|---|
CUTTER SHAFT DIAMETER |
72 mm |
CUTTER DIMENSIONS |
304x30x3 mm |
MINIMAL CUTTER HEIGHT |
18 mm |
CUTTER SHAFT ROTATIONAL SPEED |
5200 U/min |
SHAFT STOPPING TIME |
≤10 sek. |
MAXIMAL CUTTING WIDTH |
300 mm |
MAXIMAL CUTTING DEPTH |
4 mm |
CULAGA ANGLE |
90°~45° |
SUCTION FERRULE DIAMETER |
120 mm |
MOTOR POWER |
2.2 kW 400 V 50 Hz |
Thicknessing machine | |
TABLE DIMENSIONS |
626x302 mm |
TRAVELLING SPEED |
7 m/min |
MAXIMAL CYTTING THICKNESS |
4 mm |
MINIMAL WORKING HEIGHT |
6 mm |
MAXIMAL WORKING HEIGHT |
220 mm |
MINIMAL WORKING LENGTH |
140 mm |
SUCTION FERRULE DIAMETER |
120 mm |
MOTOR POWER |
2.2 kW 220V(400V) 50 Hz |
Dimension saw | |
MAXIMAL SAW-BLADE DISK DIAMETER |
315 mm |
MINIMAL SAW-BLADE DISK DIAMETER |
250 mm |
HOLE DIAMETER |
30 mm |
SHAFT STOPPING TIME |
≤10 sek |
SAW ROTATIONAL SPEED |
4000 rpm |
MAXIMAL CROSS CUTTING WIDTH |
650 mm |
SAW-BLADE DISK INCLINANTION |
90°~45° |
MOTOR POWER |
2.2 kW 220V(400V) 50 Hz |
Low-spindle milling machine | |
SPINDLE DIAMETER |
30 mm |
MAXIMAL MILLING CUTTER DIAMETER |
155 mm |
SPINDLE SPEEDS |
1400/3500/6000/8000 obr/min |
SPINDLE WORKING HEIGHT |
125 mm |
MOTOR POWER |
2.2 kW 220V(380V)50Hz |
Drill-chisel mortiser attachment | |
TABLE DIMENSIONS |
470x230 mm |
X AXIS TRAVELLING |
160 mm |
Z AXIS TRAVELLING |
105 mm |
Y AXIS TRAVELLING |
120 mm |
DRILLING DIAMETER |
3~16 mm |
WHOLE MACHINE NET WEIGHT |
525 kg |
Основні | |
---|---|
Виробник | Cormak |
Країна виробник | Польща |
- Ціна: Ціну уточнюйте
